3H-88540T Multi point door lock cylinder body Stainless steel door lock cylinder body
product description
|
Products Name |
Multi point door lock cylinder body Stainless steel door lock cylinder body |
|
Model Number |
3H-88540T |
|
Material |
Stainless Steel/Brass/Zinc Alloy Latch bolt , Deadbolt, Follower, Forend, Galvanize Steel Case |
|
Color available |
Customization, Silver, Black, Golden, Antique Brass, Antique Copper |
|
Surface treatment |
Nature, SSS , PSS , PVD , PB, AB , AC |
|
Spec. |
346*56*22 |
|
Backset available |
20mm , 25mm , 30mm , 35mm, 55mm, 60mm, 70mm, 90mm |
|
Distance |
72mm, 85mm , 92mm |
|
Packing |
30pcs / Carton |
|
Delivery Time |
30 days |
|
OEM/ODM Availability |
OEM/ODM Availability |
|
Supply Ability |
100000pcs per month |
|
Application |
casement door, Wooden Door, Metal Door, Fire Door, Smoke Door, Interior Door, Outer Door, Swing Door etc. |
|
Remark |

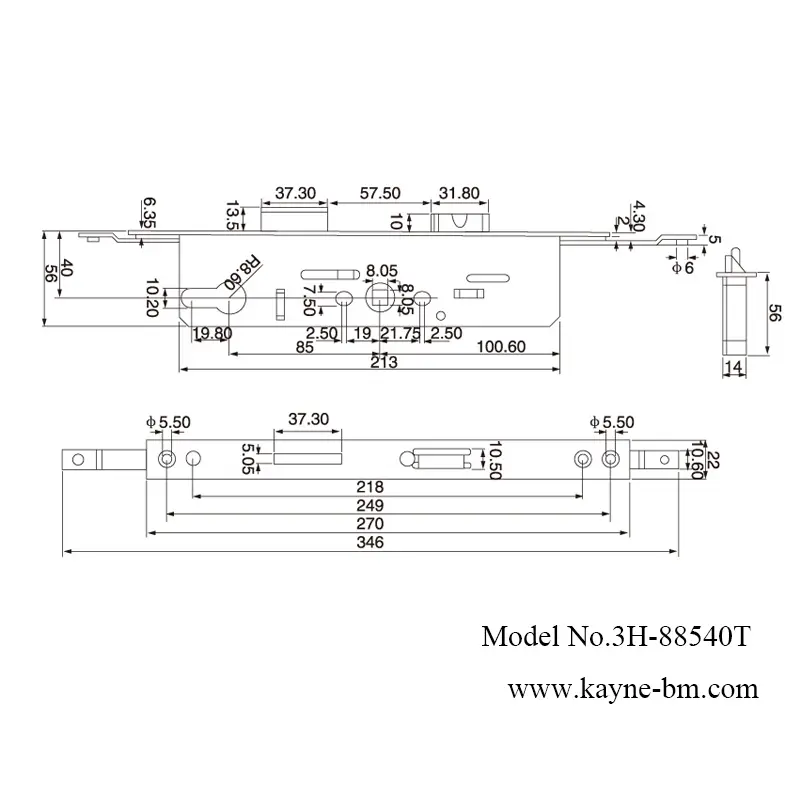

configuration as drawing, and double check by sample |
Introducing Stainless Steel Solid Door Lock Body,a cutting-edge solution for fastening narrow frame profile sliding doors. Designed and manufactured by Kayne Building Materials Ltd.,this mechanical sliding door lock is a professional screen door lock that offers unparalleled security and ease of use.
This sliding door hook lock is made of high-quality zinc alloy material,which is not only durable and wear-resistant,but also very easy to use. The zinc tongue and copper bladder,as well as the iron cross key,ensure double-sided unlocking and smooth,lag-free operation. The lock's configuration includes zinc alloy tongue,steel dial tongue and iron square tongue,providing a strong and reliable locking mechanism.
The 2.0mm stainless steel upper and lower link panels further enhance the lock's sturdiness and service life,making it suitable for a variety of applications such as broken bridge doors,plastic steel doors,and aluminum alloy doors. The lock's surface finish options,such as frosted,bronze,red bronze,imitation gold,and vacuum coating,blend seamlessly with a variety of door designs and styles.
One of the standout features of this sliding door lock is its customizable options. Customers have the flexibility to choose the body and deadbolt configuration that best suits their specific requirements. Additionally,panel material is available in stainless steel 304 or 201,with a choice of panel size,type and latch material,providing a tailor-made solution for every application.
Kayne Building Materials is committed to providing the highest quality products and this sliding door lock is no exception. The company pays attention to mechanical design,material selection,and professional craftsmanship to ensure that each lock undergoes strict testing procedures to ensure high quality and complete accessories when leaving the factory.
In addition,Kayne Building Materials Co.,Ltd. also provides a full range of services such as OEM customization,professional design,and marking,making it a one-stop destination for door and window hardware accessories. The company is committed to strict quality control,sturdy packaging and competitive prices,ensuring customers receive quality products,fast delivery and attractive quantity discounts.
Overall,the stainless steel solid door latch body is a testament to Kayne Building Materials' commitment to innovation,quality and customer satisfaction. With its advanced features,customizable options,and unwavering focus on excellence,this sliding door lock sets a new standard for security and reliability in the industry.
